Small Home
1 Beacon - Up to 2000 sqft
Wi-Fi that works
Wi-Fi made for the world you live in
In real time, the Beacon will circumvent neighboring Wi-Fi and non Wi-Fi interferences by steering your network to the best channel.
No more deadspots
The Beacons form a flexible mesh system to provide seamless Wi-Fi coverage. Use up to 3 Beacons to fit your home size.
Medium Home
2 Beacons - Up to 4000 sqft

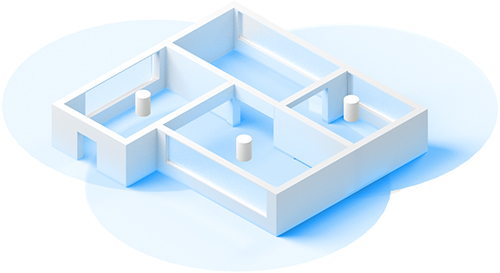

Large Home
3 Beacons - Up to 6000 sqft

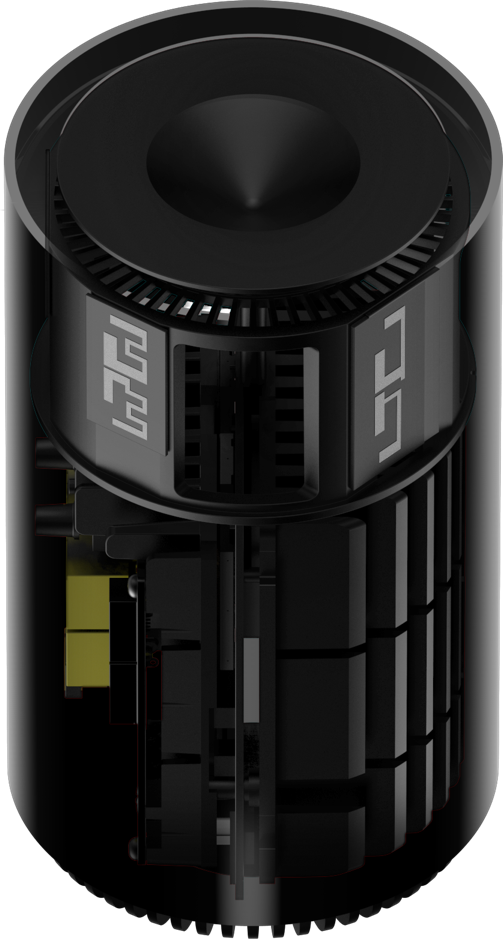

Designed for performance
Tech Specs
100%
Interference detection
The dedicated antenna detects 100%
of interference sources
(Wi-Fi and non-WiFi) in real time.
60%
Better performance
The channel AI learns about your network to automatically select the channel and band that delivers the best performance.
500ms
Traffic routing
The mesh network finds the best path to send data in as fast as 500ms.
Nokia WiFi App
Enables quick set-up to get you up and
running.
Easily manage devices and share
your network.
Home portal
Visualize everything from your network topology, to interference sources impacting your network, to live traffic consumption on each device.
Choose the solution for your home

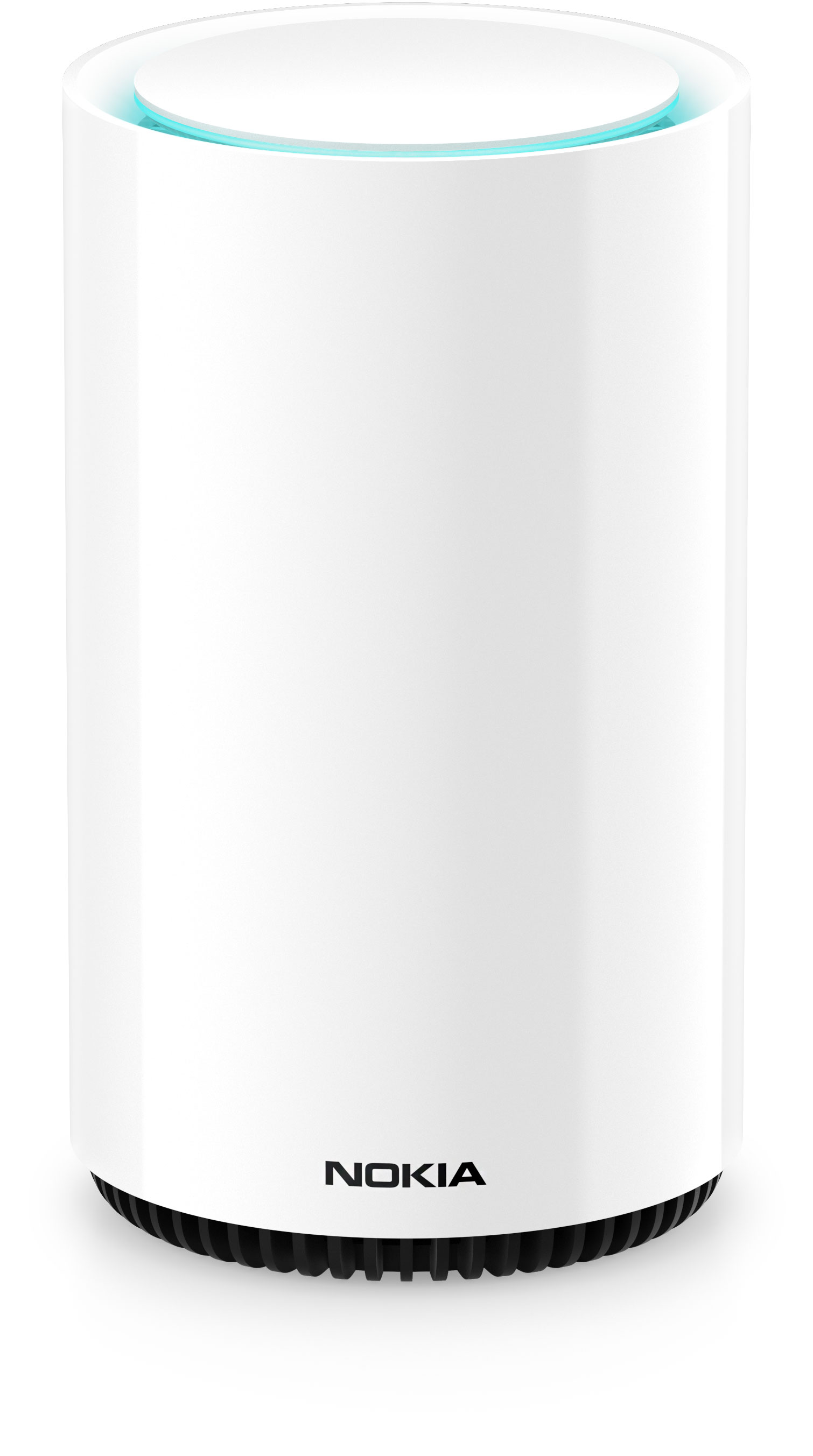

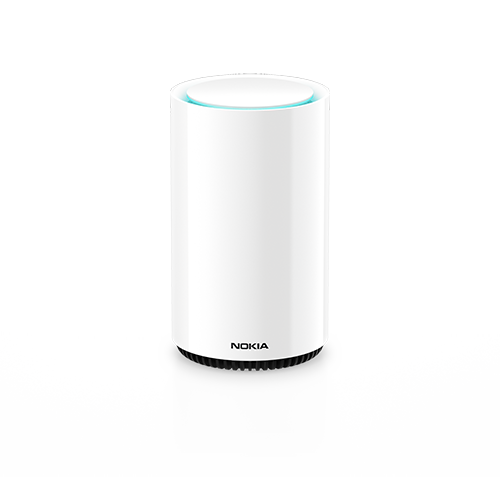

Beacon
For apartments and small homes,
providing up to 2,000 sqft of coverage.
Beacon Duo
For medium sized homes,
providing up to 4,000 sqft of coverage.
Beacon Trio
For larger sized homes,
providing up to 6,000 sqft of coverage.
Specs
Physical
Height: 160 mm (6.3 in)
Diameter: 94 mm (3.7 in)
Weight: 0.65 kg (1.4 lb)
Operating Environment
Temperature: -5°C to 45°C (23°F to 113°F)
Relative humidity: 5% to 95%, non-condensing
Power Requirements
Local powering with 12 V DC input (external AC/DC adapter)
Power consumption:
- Nominal: 7.7W
- Maximum: 19.1W
Router Mode
IPv4 and IPv6 connectivity: Dual stack and DS Lite, stateless and stateful auto-configuration, DHCPv6 prefix delegation
Point-to-Point Protocol over Ethernet (PPPoE) and IP over Ethernet (IPoE)
Network Address Translation (NAT), port forwarding, demilitarized zone (DMZ) and firewall
Dynamic Host Configuration Protocol (DHCP), domain name system (DNS) proxy and dynamic domain name system (DDNS)
Internet Group Management Protocol (IGMP) v2/ v3 proxy Multicast Listener Discovery (MLD) proxy
Virtual private network (VPN) pass through for Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP) and IPSec
WLAN interfaces
Supports 3x3 802.11b/g/n 2.4 GHz wireless LAN (WLAN) interface
Supports 4x4 802.11ac 5 GHz WLAN interface with multi-user multiple input, multiple output (MU-MIMO)
Maximum effective isotropic radiated power (EIRP) on 2.4 GHz up to 500 mW and 5 GHz up to 1 W
64-bit and 128-bit Wired Equivalent Privacy (WEP) support
Wi-Fi Protected Access (WPA) support including Pre-Shared Key (WPA-PSK) and WPA2
Media access control (MAC) filters
Ethernet interfaces
One 10/100/1000Base-T interface with RJ-45 connector for WAN side
Three 10/100/1000Base-T interfaces with RJ-45 connectors for LAN side
* Remark : The actual coverage area depends on the home floor plan, wall types and neighbouring interferences.
